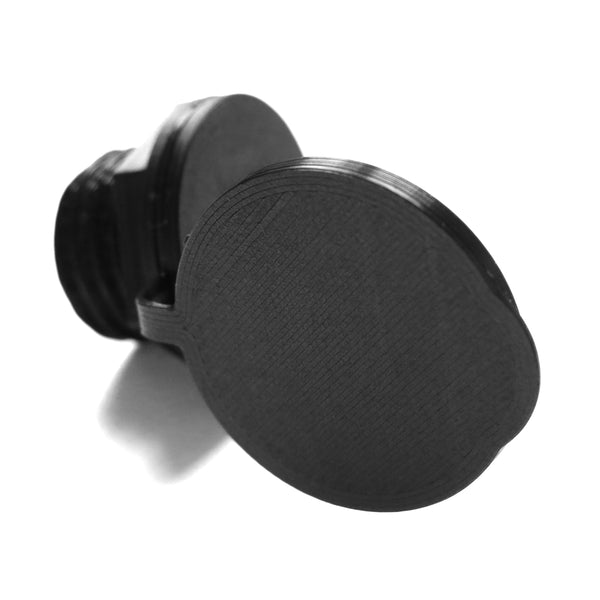

Threaded Panel Mount Housing & Cover for XT60 Connector Male & Female

This threaded panel mount allows you to mount a male or female XT60 plug in a variety of places.

PLEASE NOTE: Amass XT60H connectors with the snap-on covers will not fit this panel mount housing.

Specifications

• Includes cover - Protects the connector.
• Fitting - Panel mount fits a 25mm hole (commonly available hole saw size).
• Maximum panel thickness - 12mm (13mm without cover).
• Easy installation - Finger tightening is sufficient in most circumstances. If required, the retaining nut can be tightened with a spanner or adjustable wrench. Please bear in mind that the threads are made from plastic, so be careful not to overtighten.
• Includes two offset retaining set screws (M3x5) to secure and prevent movement of the connector. The set screws require a 1.5mm hex key to tighten them (not included).
• Versatile - Can house either a male or female XT60 connector.
• Material - 3D printed using PLA & TPU.

Listing Includes

1x XT60 panel mount fitting.
1x securing nut.
2x connector retaining set screws (already installed).
1x cover.

*Connectors NOT included.
